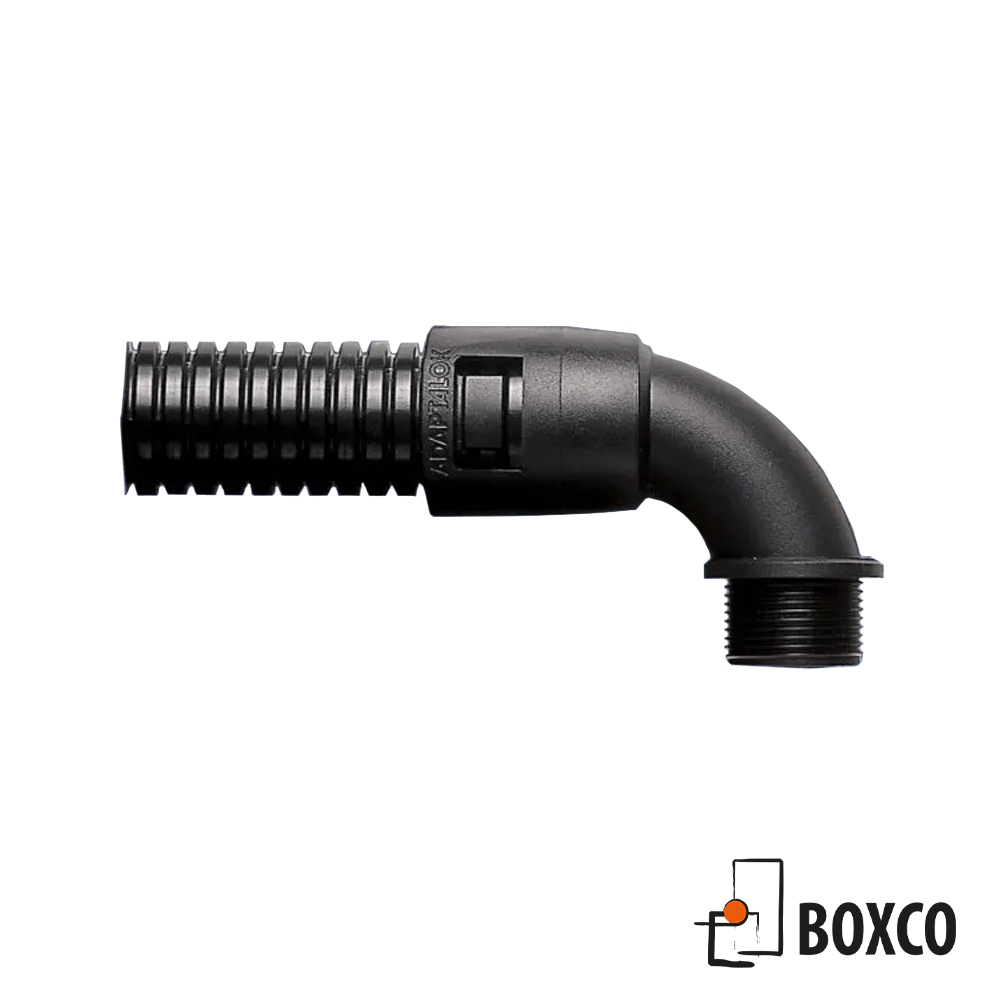

Standard 90° Vinkelkoppling – Fast yttre gänga
För montering i gängade hål eller ”knockouts”. Kontramutter medföljer endast kopplingar med Metrisk gänga.
Passar korrugerad plastslang
| art.nr | NW inner (mm) | NW ytter (mm) | Metrisk Gänga |
| AL10/M12/C90-BK | 7,5 | 10 | M12 |
| AL13/M16/C90-BK | 10 | 13 | M16 |
| AL16/M16/C90-BK | 13 | 16 | M16 |
| AL16/M20/C90-BK | 13 | 16 | M20 |
| AL21/M20/C90-BK | 17 | 21 | M20 |
| AL28/M25/C90-BK | 23 | 28 | M25 |
| AL34/M32/C90-BK | 29 | 34 | M32 |
| AL42/M40/C90-BK | 37 | 42 | M40 |
| AL54/M50/C90-BK | 50 | 54 | M50 |
| AL54/M63/C90-BK | 50 | 54 | M63 |
| art.nr | NW inner (mm) | NW ytter (mm) | Pg gänga |
| AL10/Pg7/C90-BK | 7,5 | 10 | Pg7 |
| AL13/Pg9/C90-BK | 10 | 13 | Pg9 |
| AL16/Pg9/C90-BK | 13 | 16 | Pg9 |
| AL16/Pg11/C90-BK | 13 | 16 | Pg11 |
| AL16/Pg13/C90-BK | 13 | 16 | Pg13.5 |
| AL21/Pg13/C90-BK | 17 | 21 | Pg13.5 |
| AL21/Pg16/C90-BK | 17 | 21 | Pg16 |
| AL28/Pg21/C90-BK | 23 | 28 | Pg21 |
| AL34/Pg29/C90-BK | 29 | 34 | Pg29 |
| AL42/Pg36/C90-BK | 37 | 42 | Pg36 |
| AL54/Pg48/C90-BK | 50 | 54 | Pg48 |
| art.nr | NW inner (mm) | NW ytter (mm) | PF gänga |
| AL13/PF038/C90-BK | 10 | 13 | 3/8 |
| AL16/PF038/C90-BK | 13 | 16 | 3/8 |
| AL16/PF050/C90-BK | 13 | 16 | 1/2 |
| AL21/PF050/C90-BK | 17 | 21 | 1/2 |
| AL28/PF075/C90-BK | 23 | 28 | 3/4 |
| AL34/PF100/C90-BK | 29 | 34 | 1 |
| AL42/PF125/C90-BK | 37 | 42 | 1 1/4 |
| AL54/PF150/C90-BK | 50 | 54 | 1 1/2 |
| AL54/PF200/C90-BK | 80 | 54 | 2 |
| art.nr | NW inner (mm) | NW ytter (mm) | NPT gänga |
| AL13/038/C90-BK | 10 | 13 | 3/8 |
| AL16/038/C90-BK | 13 | 16 | 3/8 |
| AL16/050/C90-BK | 13 | 16 | 1/2 |
| AL16/050/C90-BK | 13 | 16 | 1/2 |
| AL21/050/C90-BK | 17 | 21 | 1/2 |
| AL28/075/C90-BK | 23 | 28 | 3/4 |
| AL34/100/C90-BK | 29 | 34 | 1 |
| AL42/125/C90-BK | 37 | 42 | 1 1/4 |
| AL54/150/C90-BK | 50 | 54 | 1 1/2 |
| AL54/200/C90-BK | 50 | 54 | 2 |
| Material | Polyamid 66 (Nylon) |
| Färg: | Svart (BK) (grå mot förfrågan) |
| Temperaturområde | Statiska applikationer: -50°C till +120°C |
| Temperaturområde | Rörliga applikationer: -45°C till +120°C |
| Skyddsklass | Använd följande skyddsslang: |
| IP66: | UW-PA, UW-PP, UW-PA V0, UW-PAR, PA, PI |
| IP67: | Slang + ALS-packning |
| IP68: | Slang + ALS-packning |
| IP69K: | Slang + ALS-packning |
