| Type of the light fitting | Length in mm | Width in mm | Luminous Flux (lm) | Power consumption (W) |
| ProtecEx-S-1 | 700 | 160 | 2706 | 18,2 |
| ProtecEx-S-2 | 700 | 160 | 3770 | 26,1 |
| ProtecEx-M-1 | 1300 | 160 | 5413 | 35,4 |
| ProtecEx-M-2 | 1300 | 160 | 7540 | 51,3 |
| ProtecEx-L-1 | 1600 | 160 | 6647 | 44 |
| ProtecEx-L-2 | 1600 | 160 | 9259 | 63,9 |

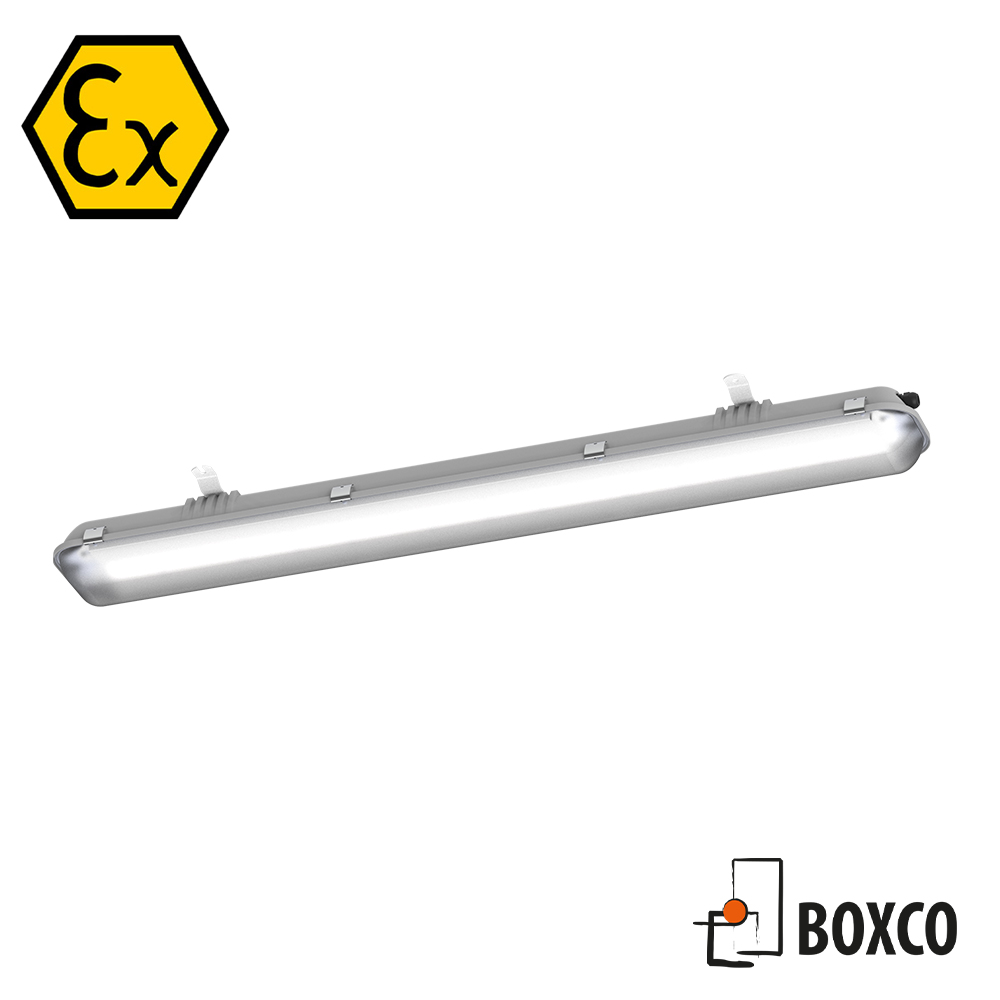

Armatur LED ATEX ProtecEx
ProtecEx
Zon 2, 22
Explosionsskyddad armatur med LED-moduler.
Designad för användning i zonerna 2,22 av gas och ånga av brandfarliga vätskor, såväl som brännbart damm och fiberexplosion i riskområden.
Armatur med ATEX-certifikat OBAC 19 ATEX 0356X
Stommen tillverkat av GRP.
Kupa i UV beständig polykarbonat.
Finns även som Nödbelysning med inbyggt batteri.
Product data
| Type of the light fitting | Length in mm | Width in mm | Luminous Flux (lm) | Power consumption (W) |
| ProtecEx-S-1 | 700 | 160 | 2706 | 18,2 |
| ProtecEx-S-2 | 700 | 160 | 3770 | 26,1 |
| ProtecEx-M-1 | 1300 | 160 | 5413 | 35,4 |
| ProtecEx-M-2 | 1300 | 160 | 7540 | 51,3 |
| ProtecEx-L-1 | 1600 | 160 | 6647 | 44 |
| ProtecEx-L-2 | 1600 | 160 | 9259 | 63,9 |
Technical data
| Light source | Protection class | Protection degree | CRI | Power factor | Long lifetime | Colour temperature | Ambient temperature |
| LED modules | I | IP66, IP67 | >80 | >0,97 | >70 000 hours L80F10 | 4000K or 6500K optionally | from -25°C up to +45°C |
CONSTRUCTION:
| Housing | Diffuser | Mounting tray | Clamps | MOUNTING |
| polyester strenghtened with glass fibre (GRP) | UV stabilized polycarbonate | galvanized steel sheet, powder painted | stainless steel | Luminaire for direct installation on the ceiling or on the wall with use of mounting brackets |
ELECTRICAL UNIT:
| Voltage: | Terminal block: |
| 230V, 0/50-60Hz | 3×2,5 mm2 (L, PE, N) or 5×2.5 mm2 (L1, L2, L3, PE, N) |
