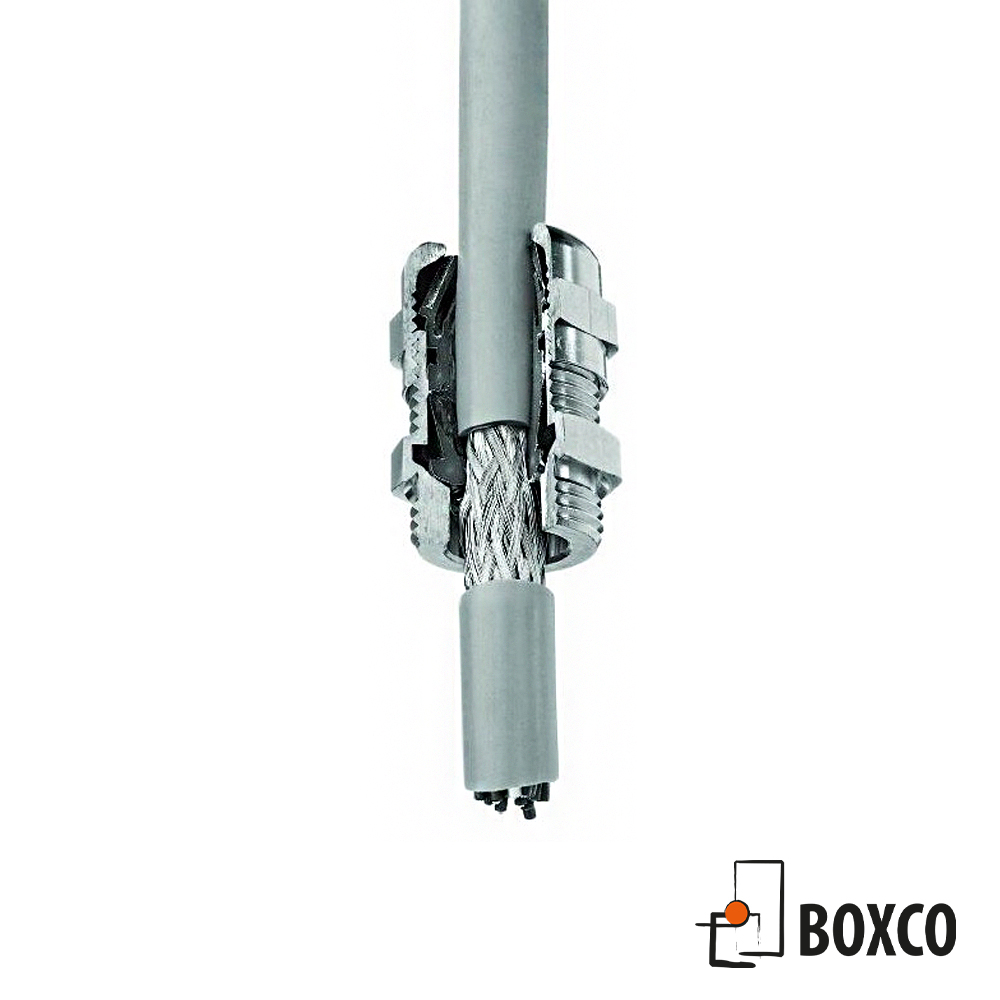

M gänga
| art.nr | Gänga | Kabel Ø mm | Nyckelvidd mm | H mm | GL Kort mm | CAD |
| 159.1507.DK | M 12 x 1.5 | 3 -6.5 | 14 | 25 | 5 | Download |
| 159.1710.DK | M 16 x 1.5 | 5 -10 | 20 | 32 | 6 | Download |
| 159.2014.DK | M 20 x 1.5 | 10 -14 | 24 | 33 | 6 | Download |
| 159.2518.DK | M 25 x 1.5 | 13 -18 | 30 | 39 | 7 | Download |
| 159.3225.DK | M 32 x 1.5 | 18 -25 | 40 | 45 | 8 | Download |
| 159.4032.DK | M 40 x 1.5 | 24 -32 | 50 | 51 | 8 | Download |
| 159.5038.DK | M 50 x 1.5 | 32 -38 | 57 | 57 | 9 | Download |
| 159.6344.DK | M 63 x 1.5 | 37 -44 | 68 / 64 | 52 | 10 | Download |
| art.nr | Gänga | Kabel Ø mm | Nyckelvidd mm | H mm | GL Lång mm | CAD |
| 159.1507.DL | M 12 x 1.5 | 3 -6.5 | 14 | 25 | 10 | Download |
| 159.1710.DL | M 16 x 1.5 | 5 -10 | 20 | 32 | 10 | Download |
| 159.2014.DL | M 20 x 1.5 | 10 -14 | 24 | 33 | 10 | Download |
| 159.2518.DL | M 25 x 1.5 | 13 -18 | 30 | 39 | 12 | Download |
| 159.3225.DL | M 32 x 1.5 | 18 -25 | 40 | 45 | 12 | Download |
| 159.4032.DL | M 40 x 1.5 | 24 -32 | 50 | 51 | 15 | Download |
