Metall Ex förskruvning – Serie 154.10 / 154.30

Egenskaper:

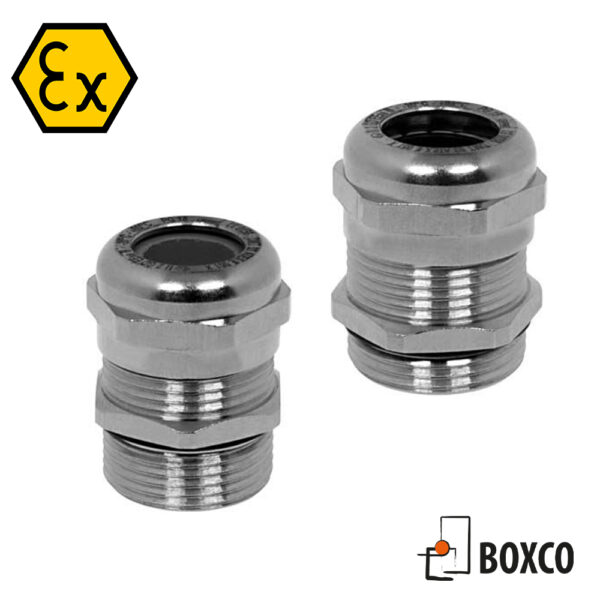

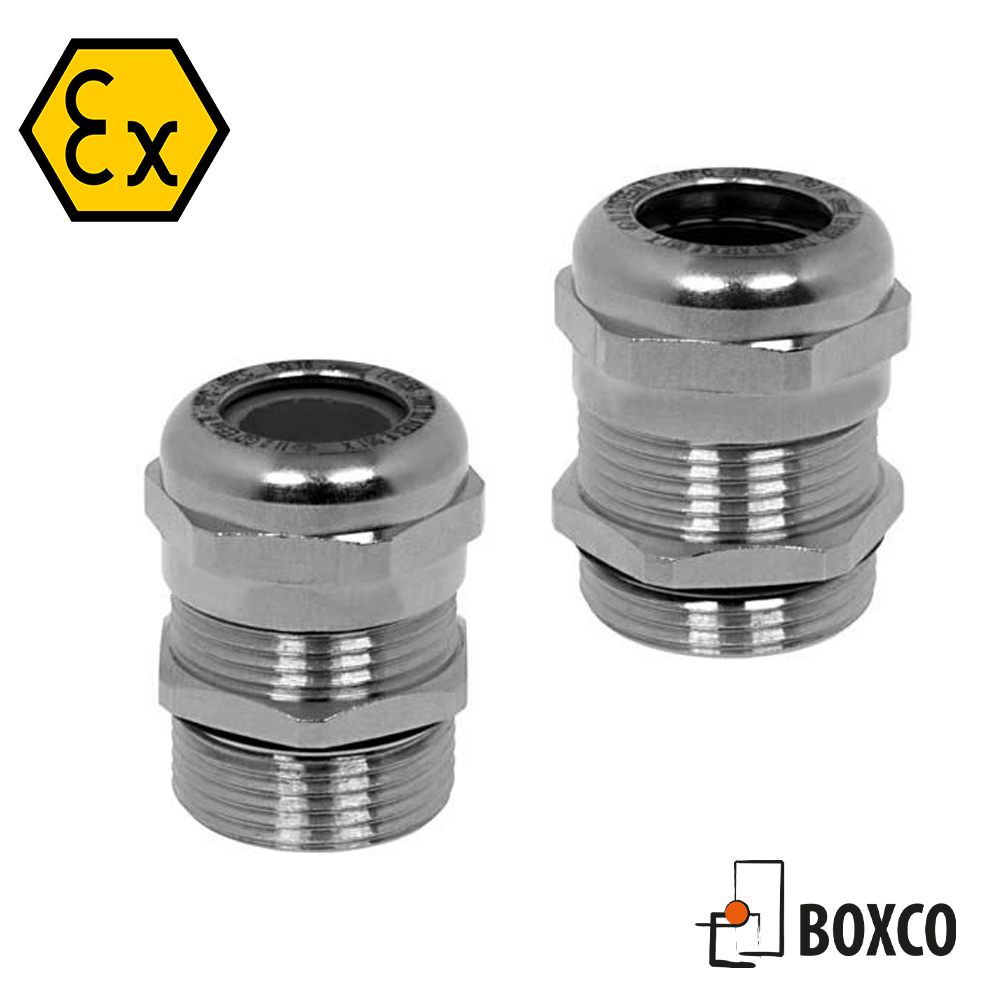

Standard ATEX förskruvning från Hummel – Serie HSK-M-Ex. Finns i lång och kort M/Pg/NPT anslutningsgänga. IP 68.

Ställ en fråga Ladda ner produktkatalog
Metall Ex förskruvning - Serie 154.10 / 154.30
Ställ en fråga Ladda ner produktkatalog

M gänga

art.nr art.nr Gänga Kabel Ø mm Nyckelvidd mm H mm Kort GL mm CAD
154.1505.10 1.610.1200.51 M 12 x 1.5 2 -5 14 19 6.5 Download
154.1507.10 1.610.1200.50 M 12 x 1.5 3 -6.5 14 19 6.5 Download
154.1706.10 1.610.1600.51 M 16 x 1.5 2 -6 19 / 17 21 6 Download
154.1708.10 1.610.1600.50 M 16 x 1.5 4 -8 19 / 17 21 6 Download
154.1710.10 1.610.1611.50 M 16 x 1.5 6 -10 20 22 6 Download
154.2009.10 1.610.2000.51 M 20 x 1.5 5 -9 22 23 6 Download
154.2012.10 1.610.2000.50 M 20 x 1.5 6 -12 22 23 6 Download
154.2014.10 1.610.2016.50 M 20 x 1.5 10 -14 24 24 6 Download
154.2516.10 1.610.2500.51 M 25 x 1.5 10 -16 30 25 7 Download
154.2518.10 1.610.2500.50 M 25 x 1.5 14 -18 30 25 7 Download
154.3220.10 1.610.3200.51 M 32 x 1.5 13 -20 40 31 8 Download
154.3225.10 1.610.3200.50 M 32 x 1.5 20 -25 40 31 8 Download
154.4026.10 1.610.4000.51 M 40 x 1.5 20 -26 50 37 8 Download
154.4032.10 1.610.4000.50 M 40 x 1.5 22 -32 50 37 8 Download
154.5031.10 1.610.5000.51 M 50 x 1.5 25 -31 57 37 9 Download
154.5038.10 1.610.5000.50 M 50 x 1.5 32 -38 57 37 9 Download
154.6335.10 1.610.6300.51 M 63 x 1.5 29 -35 68 / 64 38 10 Download
154.6344.10 1.610.6300.50 M 63 x 1.5 37 -44 68 / 64 38 10 Download
art.nr art.nr Gänga Kabel Ø mm Nyckelvidd mm H mm Lång GL mm CAD
154.1505.30 1.610.1200.31 M 12 x 1.5 2 -5 14 19 10 Download
154.1507.30 1.610.1200.30 M 12 x 1.5 3 -6.5 14 19 10 Download
154.1706.30 1.610.1600.31 M 16 x 1.5 2 -6 19 / 17 21 10 Download
154.1708.30 1.610.1600.30 M 16 x 1.5 4 -8 19 / 17 21 10 Download
154.1710.30 1.610.1611.30 M 16 x 1.5 6 -10 20 22 10 Download
154.2009.30 1.610.2000.31 M 20 x 1.5 5 -9 22 23 10 Download
154.2012.30 1.610.2000.30 M 20 x 1.5 6 -12 22 23 10 Download
154.2014.30 1.610.2016.30 M 20 x 1.5 10 -14 24 24 10 Download
154.2516.30 1.610.2500.31 M 25 x 1.5 10 -16 30 25 12 Download
154.2518.30 1.610.2500.30 M 25 x 1.5 14 -18 30 25 12 Download
154.3220.30 1.610.3200.31 M 32 x 1.5 13 -20 40 31 12 Download
154.3225.30 1.610.3200.30 M 32 x 1.5 20 -25 40 31 12 Download
154.4026.30 1.610.4000.31 M 40 x 1.5 20 -26 50 37 15 Download
154.4032.30 1.610.4000.30 M 40 x 1.5 22 -32 50 37 15 Download
154.5031.30 1.610.5000.31 M 50 x 1.5 25 -31 57 37 15 Download
154.5038.30 1.610.5000.30 M 50 x 1.5 32 -38 57 37 15 Download
154.6335.30 1.610.6300.31 M 63 x 1.5 29 -35 68 / 64 38 15 Download
154.6344.30 1.610.6300.30 M 63 x 1.5 37 -44 68 / 64 38 15 Download

PG gänga

art.nr art.nr Gänga Kabel Ø mm Nyckelvidd mm H mm Kort GL mm
154.0705.10 1.610.0700.15 Pg 7 2 -5 14 19 5
154.0707.10 1.610.0700.01 Pg 7 3 -6.5 14 19 5
154.0906.10 1.610.0900.15 Pg 9 2 -6 17 21 6
154.0908.10 1.610.0900.01 Pg 9 4 -8 17 21 6
154.1107.10 1.610.1100.15 Pg 11 3 -7 20 22 6
154.1110.10 1.610.1100.01 Pg 11 6 -10 20 22 6
154.1309.10 1.610.1300.15 Pg 13.5 5 -9 22 23 6.5
154.1312.10 1.610.1300.01 Pg 13.5 6 -12 22 23 6.5
154.1612.10 1.610.1600.15 Pg 16 7 -12 24 24 6.5
154.1614.10 1.610.1600.01 Pg 16 10 -14 24 24 6.5
154.2116.10 1.610.2100.15 Pg 21 10 -16 30 25 7
154.2118.10 1.610.2100.01 Pg 21 14 -18 30 25 7
154.2920.10 1.610.2900.15 Pg 29 13 -20 40 31 8
154.2925.10 1.610.2900.01 Pg 29 20 -25 40 31 8
154.3626.10 1.610.3600.15 Pg 36 20 -26 50 37 8
154.3632.10 1.610.3600.01 Pg 36 22 -32 50 37 8
154.4231.10 1.610.4200.15 Pg 42 25 -31 57 37 9
154.4238.10 1.610.4200.01 Pg 42 32 -38 57 37 9
154.4835.10 1.610.4800.15 Pg 48 29 -35 64 38 10
154.4844.10 1.610.4800.01 Pg 48 37 -44 64 38 10
art.nr art.nr Gänga Kabel Ø mm Nyckelvidd mm H mm Lång GL mm
154.0705.30 1.610.0700.61 Pg 7 2 -5 14 19 10
154.0707.30 1.610.0700.60 Pg 7 3 -6.5 14 19 10
154.0906.30 1.610.0900.61 Pg 9 2 -6 17 21 10
154.0908.30 1.610.0900.60 Pg 9 4 -8 17 21 10
154.1107.30 1.610.1100.61 Pg 11 3 -7 20 22 10
154.1110.30 1.610.1100.60 Pg 11 6 -10 20 22 10
154.1309.30 1.610.1300.61 Pg 13.5 5 -9 22 23 10
154.1312.30 1.610.1300.60 Pg 13.5 6 -12 22 23 10
154.1612.30 1.610.1600.61 Pg 16 7 – 12 24 24 10
154.1614.30 1.610.1600.60 Pg 16 10 -14 24 24 10
154.2116.30 1.610.2100.61 Pg 21 10 -16 30 25 12
154.2118.30 1.610.2100.60 Pg 21 14 -18 30 25 12
154.2920.30 1.610.2900.61 Pg 29 13 -20 40 31 12
154.2925.30 1.610.2900.60 Pg 29 20 -25 40 31 12
154.3626.30 1.610.3600.61 Pg 36 20 -26 50 37 15
154.3632.30 1.610.3600.60 Pg 36 22 -32 50 37 15
154.4231.30 1.610.4200.61 Pg 42 25 -31 57 37 15
154.4238.30 1.610.4200.60 Pg 42 32 -38 57 37 15
154.4835.30 1.610.4800.61 Pg 48 29 -35 64 38 15
154.4844.30 1.610.4800.60 Pg 48 37 -44 64 38 15

NPT gänga

art.nr art.nr Gänga Kabel Ø mm Nyckelvidd mm H mm GL mm CAD
154.3906.10 1.610.3800.71 3/8 NPT 2 -6 19 / 17 21 15 Download
154.3908.10 1.610.3800.70 3/8 NPT 4 -8 19 / 17 21 15 Download
154.1909.10 1.610.1200.71 1/2 NPT 5 -9 24 / 22 24 13 Download
154.1912.10 1.610.1200.70 1/2 NPT 6 -12 24 / 22 24 13 Download
154.3516.10 1.610.3400.71 3/4 NPT 10 -16 30 25 13 Download
154.3518.10 1.610.3400.70 3/4 NPT 14 -18 30 25 13 Download
154.7520.10 1.610.1000.71 1 NPT 13 -20 40 31 19 Download
154.7525.10 1.610.1000.70 1 NPT 20 -25 40 31 19 Download

Specifikationer

Material Nickelpläterad mässing
Kläminsats: PA (Nylon)
Innerpackning NBR
O-ring NBR
Temperaturområde -20°C till 95°C
Skyddsklass IP 68
Certifikat: DMT 03 ATEX E 051 X
