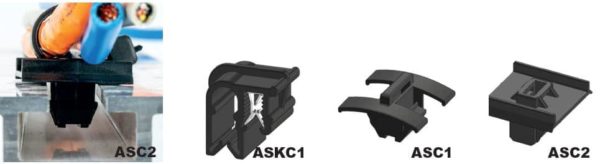

| Types of solar clips |
|
|
|
|
| BOXCO PART NR |
Mounting of clip |
Mounting of cable |
Supplied with cable tie |
|
| ASKC1 |
Profile thickness of 0.7 – 3.0 mm |
For 2×6.0mm cable, no cable tie |
Not needed |
|
| ASC1 |
M10 / 7.0 mm deep |
Fixation with cable tie |
No |
|
| ASC1-TIE |
M10 / 7.0 mm deep |
Fixation with cable tie |
Yes, 200×4,8mm BK |
|
| ASC2 |
M8 / 6.9 mm deep |
Fixation with cable tie |
No |
|
| ASC2-TIE |
M8 / 6.9 mm deep |
Fixation with cable tie |
Yes, 200×4,8mm BK |
|
|
|
|
|
|
| Types of solar clips |
|
|
|
|
| BOXCO PART NR |
Profile thickness (in mm) |
Cable tie fastening |
Positioning of cable tie in relation to profile |
|
| AKC1 |
0.7 – 3.0 |
Top side |
Right-angled on the profile |
|
| AKC2 |
0.7 – 3.0 |
Side |
Right-angled on the profile |
|
| AKC3 |
0.7 – 3.0 |
Top side |
Longitudinal direction of the profile |
|
| AKC5 |
0.7 – 3.0 |
Side |
Longitudinal direction of the profile |
|
| AKC15 |
0.7 – 3.0 |
Top and side |
Four directions |
|
| AKC15-BKT |
0.7 – 3.0 |
Top and side |
Four directions, incl Tie 200×4,8mm BK |
|
| AKC17-BKT |
0.7 – 3.0 |
Top side |
Right-angled on the profile, incl tie 160×3,6mm BK |
|
| AKC18-BKT |
0.7 – 3.0 |
Side |
Right-angled on the profile, incl tie 160×3,6mm BK |
|
| AKC19-BKT |
0.7 – 3.0 |
Top side |
Longitudinal direction of the profile, incl tie 160×3,6mm BK |
|
| AKC20-BKT |
0.7 – 3.0 |
Side |
Longitudinal direction of the profile, incl tie 160×3,6mm BK |
|
| AKC107 |
3.0 – 6.0 |
Top and side |
Four directions |
|
| AKC4 |
3.0 – 6.0 |
Top side |
Longitudinal direction of the profile |
|
| AKC87 |
3.0 – 6.0 |
Top side |
Longitudinal direction of the profile |
|
| AKC88 |
3.0 – 6.0 |
Top side |
Right-angled on the profile |
|
| AKC89 |
3.0 – 6.0 |
Side |
Right-angled on the profile |
|
| AKC90 |
3.0 – 6.0 |
Side |
Longitudinal direction of the profile |
|
|
|
|
|
|

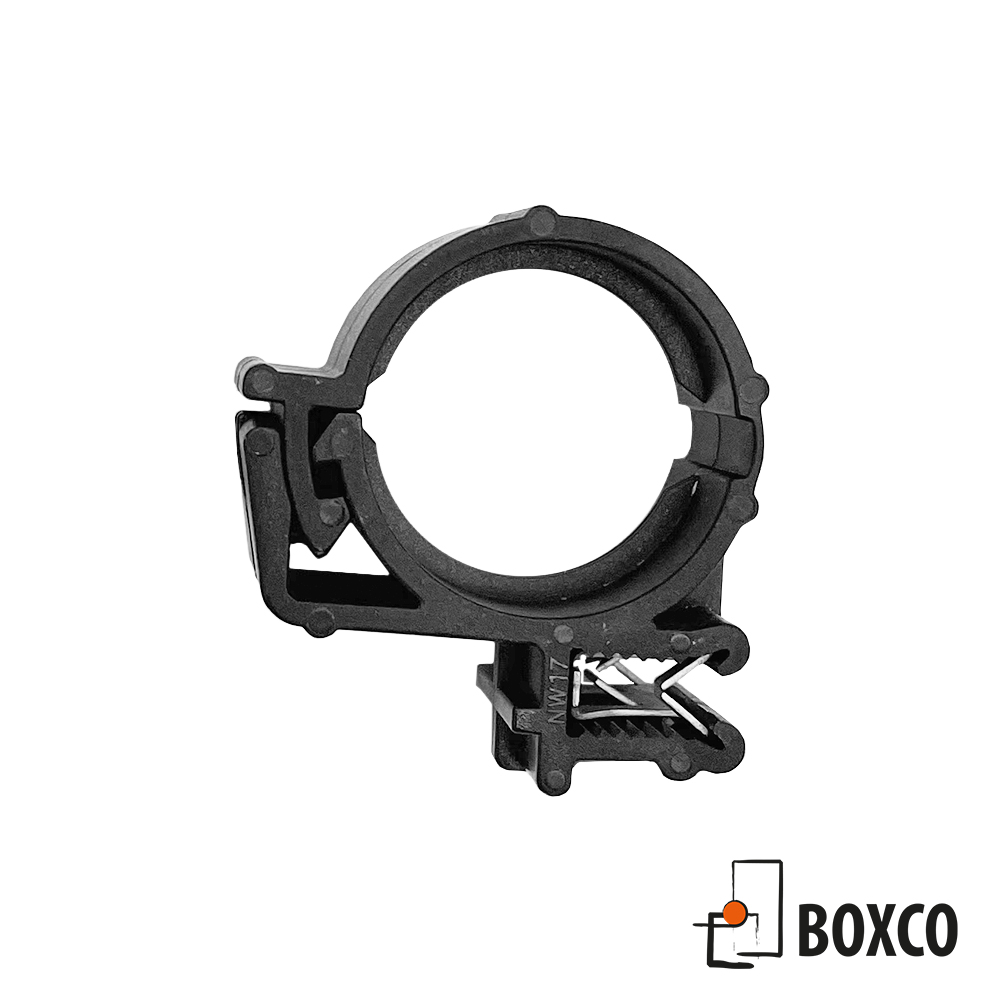

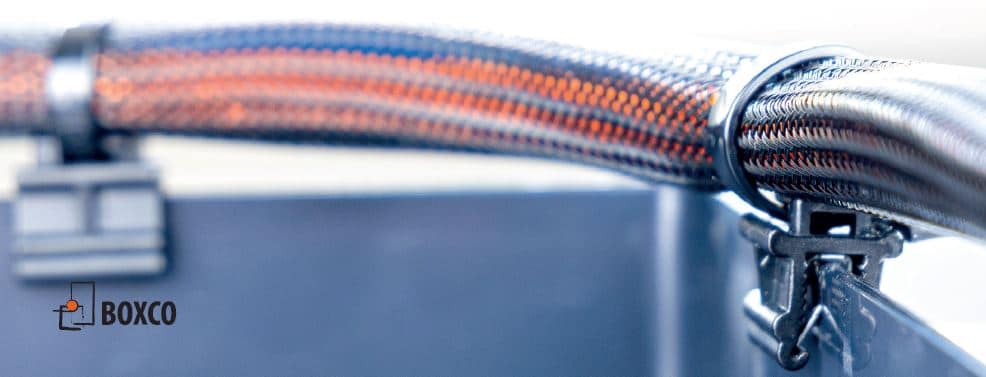

| Edge clips for corrugated tubing |
|
|
|
|
| BOXCO PART NR |
Profile thickness (in mm) |
Position of corrugated tube |
Direction of corrugated tube in relation to profile |
For Conduit |
|
|
in relation to profile |
|
size NW |
| AKC24 |
0.7 – 3.0 |
Top side |
Longitudinal direction of the profile |
4.5 |
| AKC21 |
0.7 – 3.0 |
Top side |
Longitudinal direction of the profile |
7.5 |
| AKC32 |
0.7 – 3.0 |
Top side |
Longitudinal direction of the profile |
17 |
| AKC30 |
3.0 – 6.0 |
Top side |
Longitudinal direction of the profile |
4.5 |
| AKC12 |
3.0 – 6.0 |
Top side |
Longitudinal direction of the profile |
13 |
| AKC23 |
0.7 – 3.0 |
Top side |
Right-angled on the profile |
4.5 |
| AKC22 |
0.7 – 3.0 |
Top side |
Right-angled on the profile |
10 |
| AKC31 |
0.7 – 3.0 |
Top side |
Right-angled on the profile |
13 |
| AKC35 |
0.7 – 3.0 |
Side |
Longitudinal direction of the profile |
2x 10 |
| AKC25 |
0.7 – 3.0 |
Side |
Longitudinal direction of the profile |
4.5 |
| AKC26 |
0.7 – 3.0 |
Side |
Longitudinal direction of the profile |
10 |
| AKC36 |
0.7 – 3.0 |
Side |
Longitudinal direction of the profile |
13 |
| AKC28 |
3.0 – 6.0 |
Side |
Longitudinal direction of the profile |
4.5 |
| AKC29 |
3.0 – 6.0 |
Side |
Longitudinal direction of the profile |
7.5 |
| AKC27 |
3.0 – 6.0 |
Side |
Longitudinal direction of the profile |
10 |
